CATVOP-1500 Series Fiber Amplifier
Features
1. Selection of internationally renowned brands of low noise pump lasers, low distortion, wide band, high output optical power.
2. Imported high-performance American Corning Erbium-doped fiber, high energy conversion efficiency.
3. 32-bit ARM processor, light control output accuracy of ±0.1dBm.
4. Optical power receiving range -5dBm ~ +10dBm, optical power output 13~26dBm
5. The number of output ports is 1/2/4/8 optional, enabling CATV network construction.
6. A dual-module structure is reserved, and functions such as light emitting, EDFA, optical switch, optical receiver, RF switch, RF amplifier, and reverse light receiver can be added.
7. Modular structure, easy to expand the function of equipment and maintenance.
8. All control circuits and devices use high-efficiency switching chips, and the overall power consumption is ≤10W.
9. The power supply can realize dual power hot backup, snap-type fixed, one-touch pull. Voltage 220V & 110V & 48V optional.
10. Output power +0.2~-4dBm adjustable.
11. Standard network management interface, in line with SNMP network management protocol.
12. Use 144*32 blue dot matrix LCD display to realize parameter on-site monitorin.
Applications
Erbium doped fiber amplifier (EDFA) is a CATV professional device used to amplify and transmit 1550 nm optical signals in a cable television transmission system. Cable TV 1550nm single- wavelength transmission, DWDM multi-wavelength transmission, flat gain, low noise series (PA), mid-noise series (LA), and power amplifier series (BA) are available. The company can produce a wide range of products such as power amplifiers, pre-amplifiers, and line amplifiers to meet different application locations of equipment and different customerrequirements.
Block diagram
Limit parameter
Technical parameters | OP-1500 |
Maximum received optical range | 1535~1565nm |
Lowest input optical power | -5dBm |
The highest input optical power | +10dBm |
Extreme operating temperature | -5℃~+42℃ |
Limit supply voltage | AC160~265V&DC90~130V&DC38~58V |
Technical parameters
Technical parameters | OP-1500 |
Received wavelength | 1535~1565 nm |
Input optical power | -5dBm~+10dBm（Standard input+3dBm） |
Output optical power | Max +26dBm |
Output power stability | ±0.1dBm |
Noise Figure | ≤5.0dB（Pin=0dB） |
Input reflection loss | ≥45dB |
Output reflection loss | ≥45dB |
C/N | ≥50dB |
C/CTB | ≥63dB |
C/CSO | ≥63dB |
The optical fiber connector | FC/APC(Standard)&SC/APC&LC/APC(Customizable) |
Voltage | AC220V(160V ~ 265V) /AC110V（90 ~130V）/DC48V（38 ~ 58V） |
Total power consumption | ≤10w |
Operating temperature | -5℃~+42℃ |
Storage temperature | -30℃~+70℃ |
Maximum working relative humidity | Up to 95% non-condensing |
Dimensions | 357(W)*482(L)*44(H)mm |
Packing size (one set) | 595(W)*490(L)*120(H)mm |
Packing size (two sets) | 595(W)*490(L)*230(H)mm |

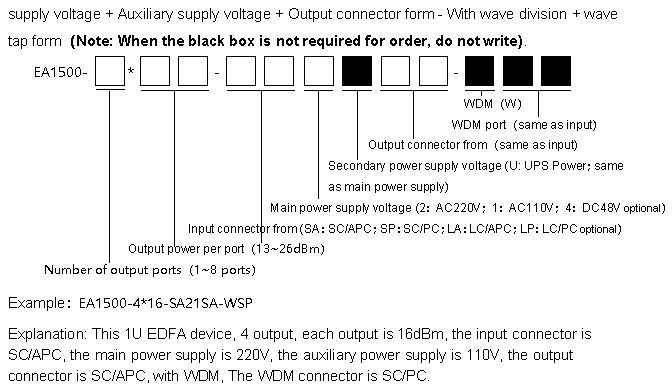

Model guide
OP-1500 - Number of ports * Number of power per port - Input connector type + Mains
Package & Label
