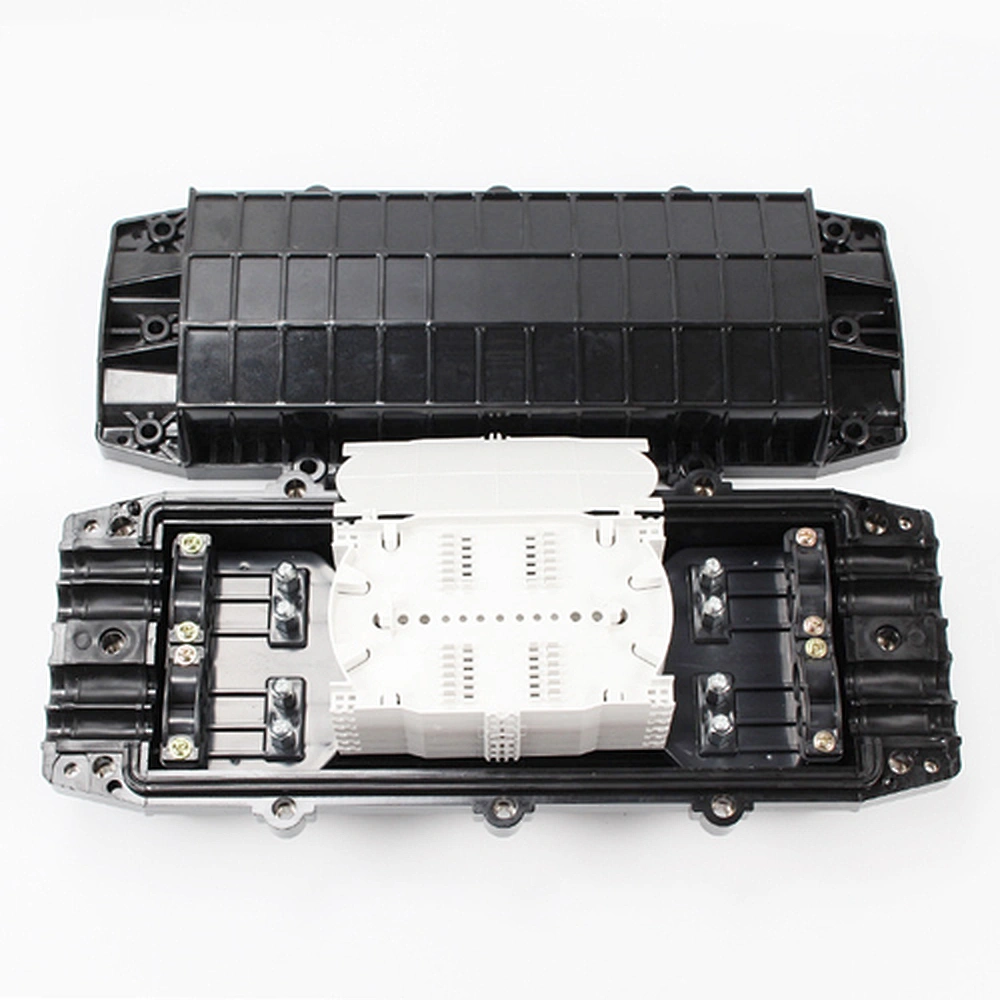

IP68 Horizontal joint closure 48/72/96/144 core fiber optic splice joint closure enclosure
SZOTOPC245
Splice closure is a continuous protection device for supplying optical, sealing and mechanical strength continuity between adjacent optical cables.The terminal splice box is suitable for the connection in the terminal room of the layout optical cable. The cable layout is sophisticated, the seal is firm and the construction is convenient.
Quantity
Product Description
Fiber optic splice closures are used throughout the network, including the fiber trunk, feeder, distribution, and last mile segments. Our closure are normally used to connect optical cables in the long-distance transmission network, closure also routes and branches optical fibers.fiber to the home (FTTH) is a type of point to multiple points (P2MP) network with many branching points, so closures are widely used to implement cable distribution, optical fiber splitting, and flat drop cable output.
Fiber optic splice closures are used throughout the network, including the fiber trunk, feeder, distribution, and last mile segments. Our closure are normally used to connect optical cables in the long-distance transmission network, closure also routes and branches optical fibers.fiber to the home (FTTH) is a type of point to multiple points (P2MP) network with many branching points, so closures are widely used to implement cable distribution, optical fiber splitting, and flat drop cable output.
Features:
◆Widely applied in aerial,direct and branch connection for cables lower than 360 fibers.
◆Suitable for ordinary fiber and ribbon fiber.
◆Fully kitted with all parts for convenient operation.
◆Overlap structure in splicing tray for easy installation.
◆Fiber-bending radium guaranteed more than 40mm.
◆Easy to install and re-entry with a common can wrench.
◆Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
◆Stand up to severe condition of moisture,vibration and extreme temperatures.
◆Mechanical sleeve or heat shrinkable fixing sleeve for optional.
◆Widely applied in aerial,direct and branch connection for cables lower than 360 fibers.
◆Suitable for ordinary fiber and ribbon fiber.
◆Fully kitted with all parts for convenient operation.
◆Overlap structure in splicing tray for easy installation.
◆Fiber-bending radium guaranteed more than 40mm.
◆Easy to install and re-entry with a common can wrench.
◆Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
◆Stand up to severe condition of moisture,vibration and extreme temperatures.
◆Mechanical sleeve or heat shrinkable fixing sleeve for optional.
| Dimension ( mm ) | 460x180x108 |
| Weight ( Kg ) | 3.5 |
| Cable Diameter (mm) | 7~18 |
| Cables Entry & Exit | 4 & 4 |
| Max Capacity of Cores Per Splice Tray | 12 (Single)/24 (Single) |
| Max Capacity of Splice Trays/ Closure | 5 (12cores/tray) / 4 (24 cores/tray) |
| Max Capacity of Cores | 60 Cores (12cores/tray) / 96 Cores (24 cores/tray) |
| Sealing Structure of Shell | Sticky Cincture or Silicon Gum Material |
