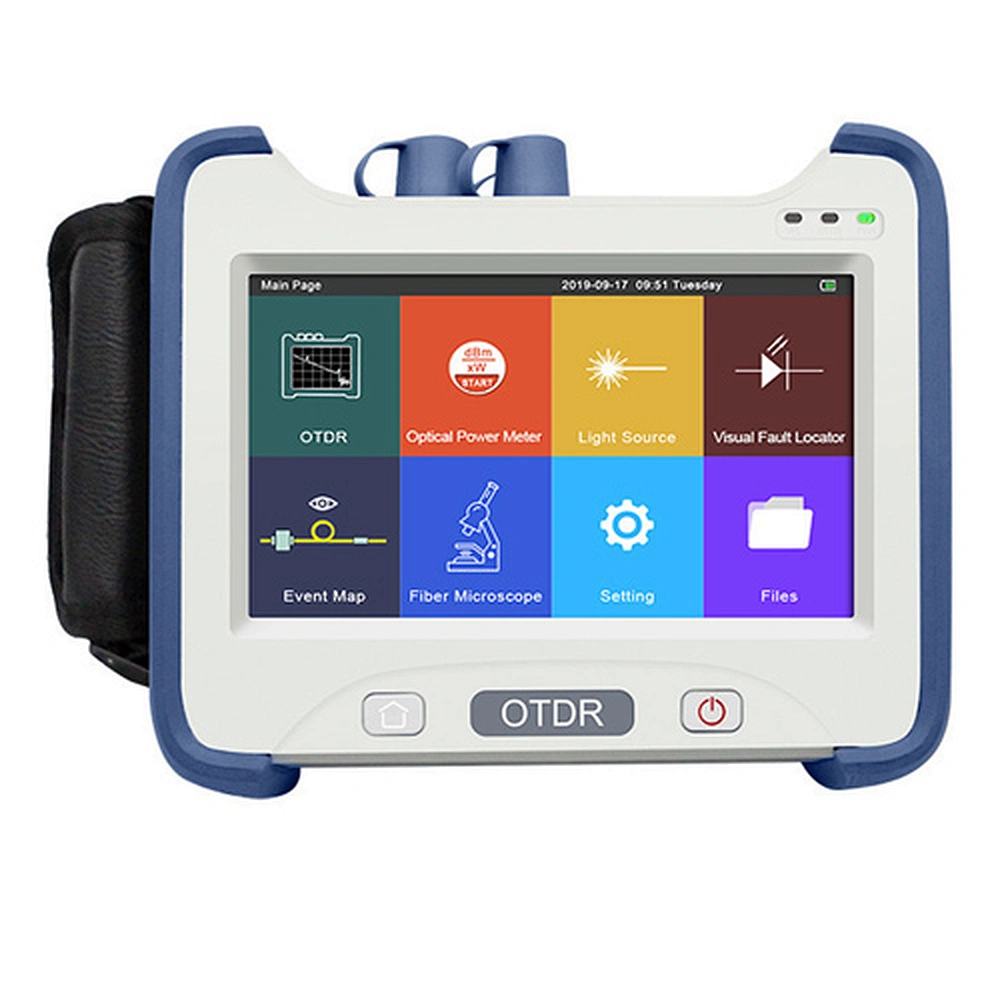

Functions:
Optical Power Meter: 850/1300/1310/1490/1550/1625nm; -70~+10db or -50~+26db
Optical Light Source: 1310/1550nm
Applications:
1.Measure the loss of splicing points, optical connectors and adapters.
2.Measure the loss of single fiber or cable.
3.Measure the length of cable ,set different refractive index for various fibers.
4.Locate the position of broken point, Optical connector and adapter.
5.Measure the discrete reflection ratio between SR points.
6.Measure return loss for whole fiber circuit including connecting points and s points.
| Wavelength | 1310/1550nm |
| Dynamic Range | 32/30dB |
| Measure distances | 0-500m |
| Fiber type | SM/MM |
| Measurement Time | Use-defined (smart link) ; with real-time measurement function |
| Type of Connectors | FC/PC/ (SC/APC Connector can be customized) |
| Linearity | ≤0.05dB/dB |
| Loss Threshold | 0.01dB |
| Loss Resolution | 0.001dB |
| Distance Resolution | 0.01m |
| Sampling Resolution | minimum 0.25m |
| Sampling Point | Maximum 128,000 points |
| Distance Accuracy | ±(1m+measuring distance×3×10-5+sampling resolution ) |
| Internal visual source | 10mw, CW/2Hz |
| Stable laser source | >-5dBm |
| DataStorage | 80000 groups of curve |
| Interface | 3 USB port |
| Display | 7 inch capacitive touching screen |
| Power Supply | 7.4V/6.6Ah lithium battery |
| Battery working time | continuous 8-10 hours |
| Temperature | Operate :-5~50 ,Store:-20~75 |
| Humidity | ≤90%, non-den |
| Weight(kg) | 7 |
| Accessories | Main unit, 8.4V power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case |
| Option | SC/ST, Bare fiber adapter |
Product Features:
1.Integrated design ,smart and rugged.
2.Small and light ,easy to carry.
3.1625nm online detection module with filter is available as a option for a online FTTx/PON detection.
4.Multi-measuring mode, simple to use,finish measurement by just one button.
5.Realtime measuring function, convenient to monitor the splicing process.
6.Internal large power visual laser source for accurate positioning the closer fault point.
7.Internal -5dBm stable laser source.
8.Warnning function could prevent module of OTDR damaged by optical signal.
9.Integrated with 2 main USB and one sub USB port, for controlling by PC or connect external instrument.
10.Support chinese and english input,friendly interface,analog keyboard capable.
11.Integrated with 8G internal memory. Storage more than 80000 groups curve.
12.Provide data simulation software to process, generate and print report.
13.Battery indicate function.
14.Long working hours for outdoor operation
