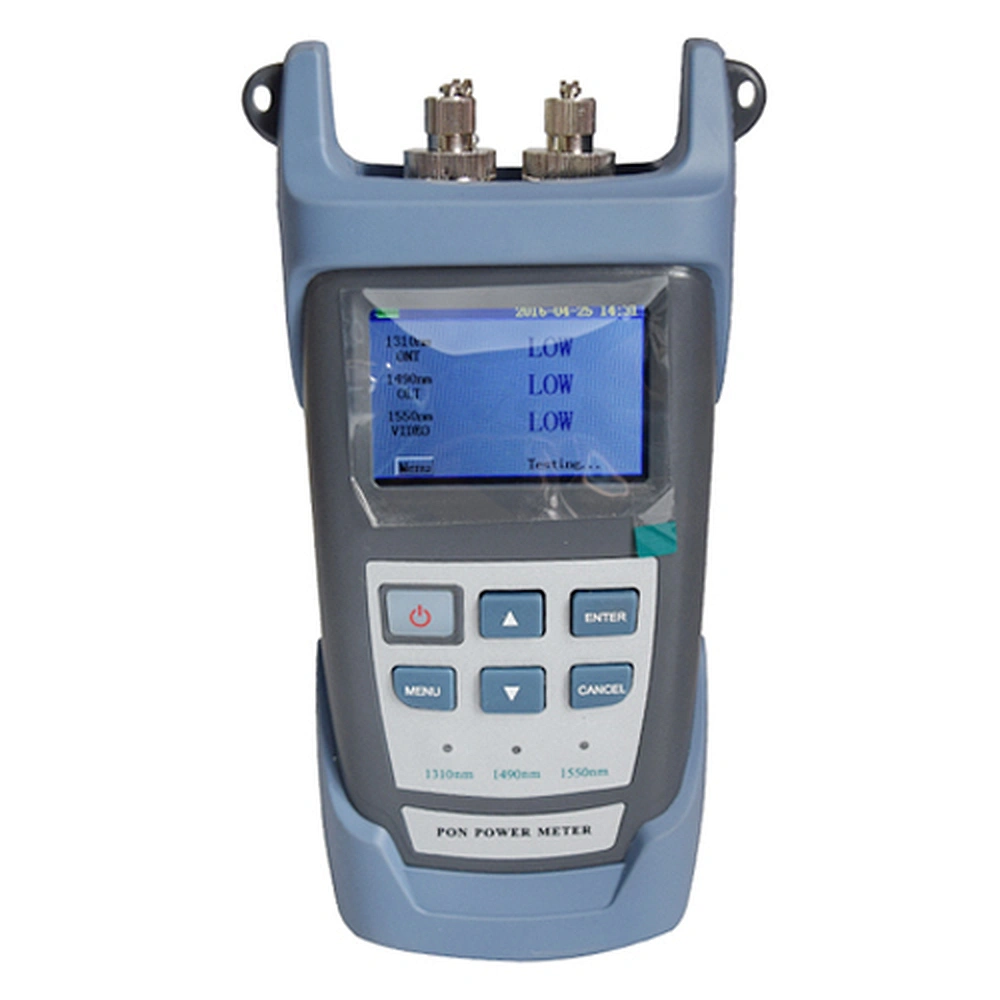

Handheld Fiber Optical PON Power Meter 1310/1490/1550nm PON FTTH Power Meter
PON OPM

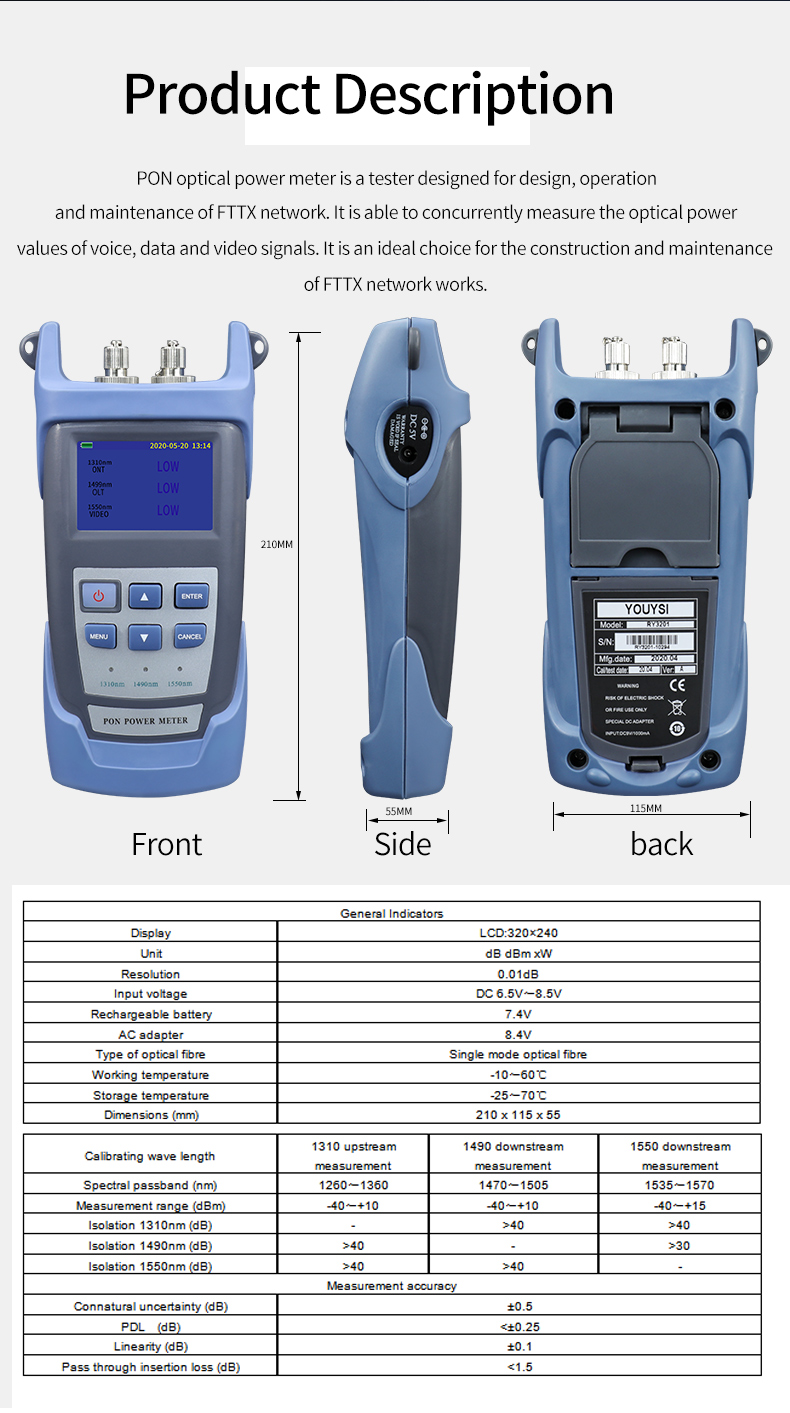

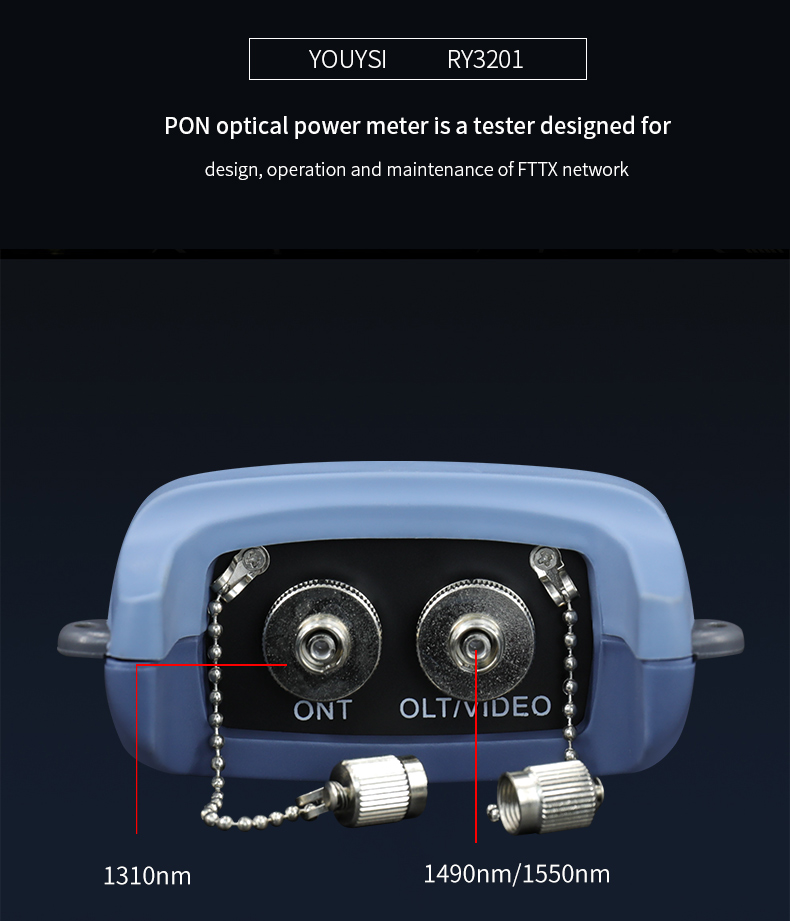

PON optical power meter is a tester designed for desig, operation and mainterance of FTTX network
Quantity
| Specifications | |||
| Model | OP3201 | ||

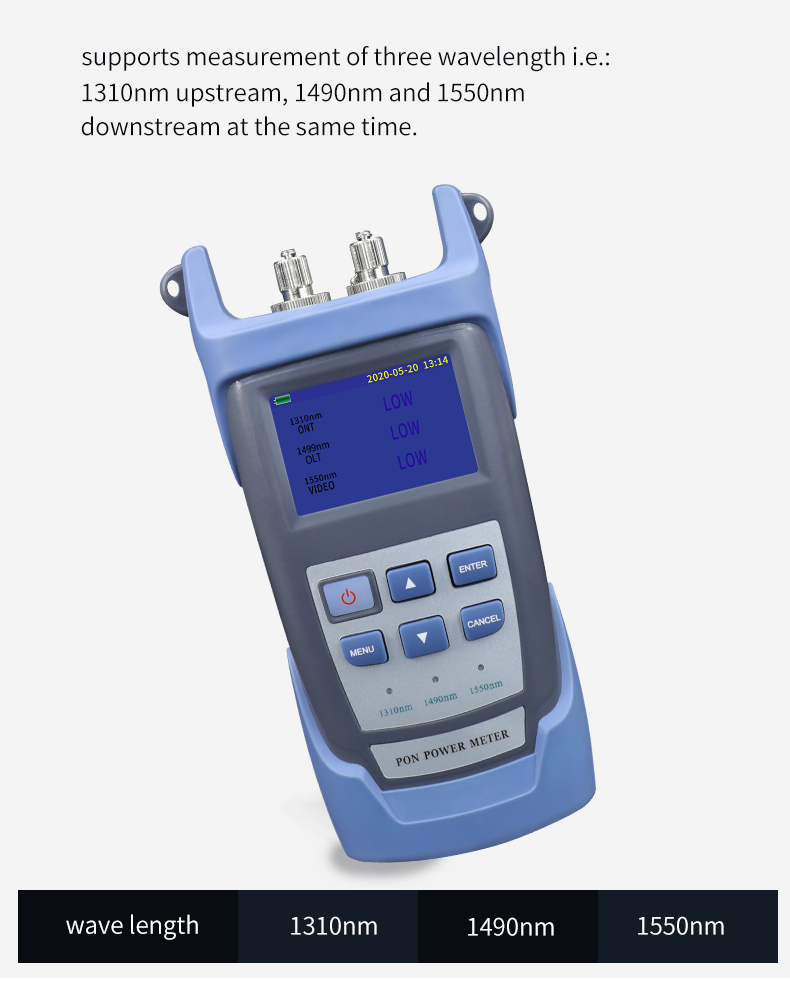

| Measurement wavelength | 1310 upstream measurement | 1490 downstream measurement | 1550 downstream measurement |
| Pass Zone(nm) | 1260~1360 | 1470~1505 | 1535~1570 |
| Measurement Range(dBm) | -40~+10 | -40~+10 | -40~+20 |
| Isolation1310nm(dB) | - | >40 | >40 |
| Isolation 1490nm(dB) | >40 | - | >40 |
| Isolation 1550nm(dB) | >40 | >40 | - |
| Measurement Accuracy | |||
| Connatural uncertainty(dB) | 0.5 | ||
| Connatural uncertainty(dB) | <+0.25 | ||
| Linearity(dB) | 0.1 | ||
| Passing through insertion Loss(dB) | <1.5 | ||
| Normal Optical Power Meter Module | |||
| Display | 128*64 | ||
| Measurement Unit | dB/dBm/ xW | ||
| Resolution (dB) | 0.01 | ||

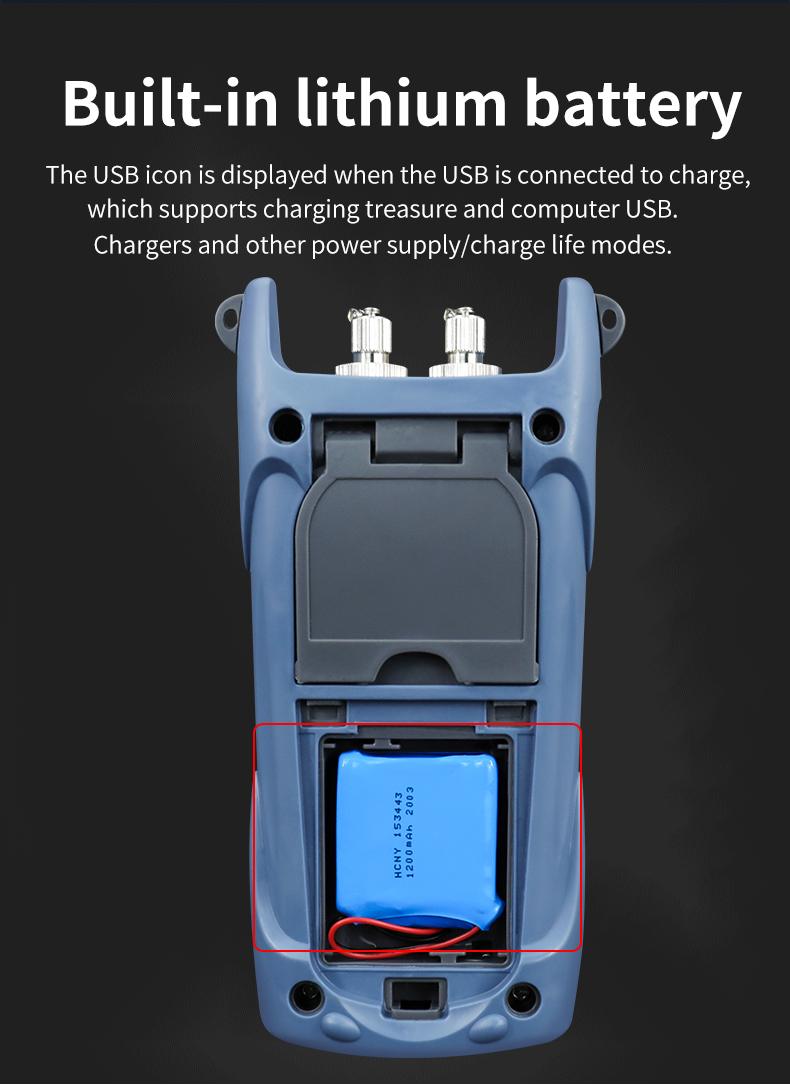

| Power Supply | Li battery (9V) | ||
| Fiber Type | SM | ||
| Measurement Range(dBm) | -10~600C | ||
| Store Range(dBm) | -25~700C | ||
| Size (mm) | 210 x 115 x 55 | ||
